冲击扳手

当前位置:首页 > 产品中心 > 锁固工具 > 冲击扳手 > 3/8"

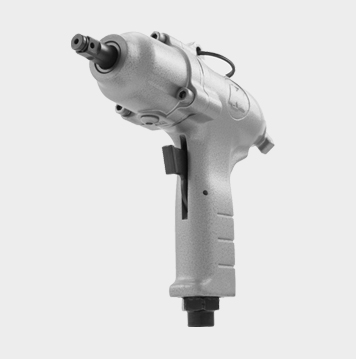

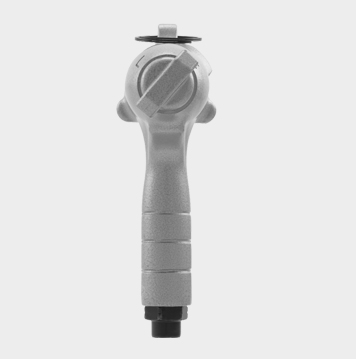

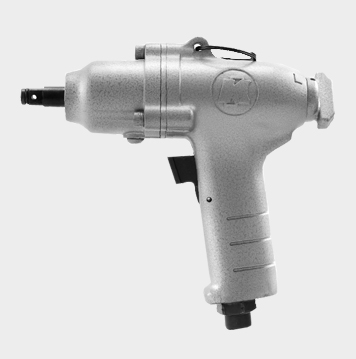

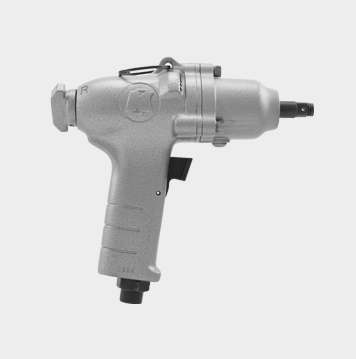

KI-1303-P冠亿3/8平方米超大气压冲击扳手
KI-1303-P冠亿3/8平方米超大气压冲击扳手
特色:
• Mono-power setting • 150ft-lb of Max torque
优点:
• Powerful & fast for highest productivity with well-balanced clutch which produces less torque reaction to operator • Extremely durable and recommended for general high-volume assembly such as motor vehicle, appliances, and machinery

分解图:点击下载

描述

分類
產業類別Industrial Assembly Line
應用Assembly Tools
產品分類Impact Wrench
應用頻率Manufacturing Assembly Line


尺寸
長度 1 -Imperial (英吋)7.1
長度 1 -Metric (公厘)180


重量
英制 (磅)2.43
公制 (公斤)1.1


功率
動力源Compressed Air
推薦進氣壓力 (磅)90
推薦進氣壓力 (bar)6.2
平均耗氣量 (cfm)2.5
平均耗氣量 (L/min)71
進氣口 (英吋)1/4
空氣軟管I.D. (英吋)3/8
排氣方向Front exhaust


發動機
類型Air rotor
一般轉速 (轉)8,500


傳輸模式
扭矩傳導機制Twin Dog Clutch


能力
工作力矩在5秒 (Nm)203
工作力矩在5秒 (Ft-lb)150


支撐器
砧座長度 (英吋)Standard
砧座形狀Square Drive (inch)
砧座尺寸 - 方型驅動 (英吋)3/8


安全要求
機械安全指令2006/42/EC
風險評估與風險降低ISO 12100
安全要求ISO 11148-6
噪音等級ISO 15744
振動等級ISO 28927-2
本文网址:http://www.kuaniair.com/Y2/126.html
上一条:KI-1303冠亿3/8平方米超大气压冲击扳手
下一条:KI-1307冠亿3/8平方米超大气压冲击扳手
