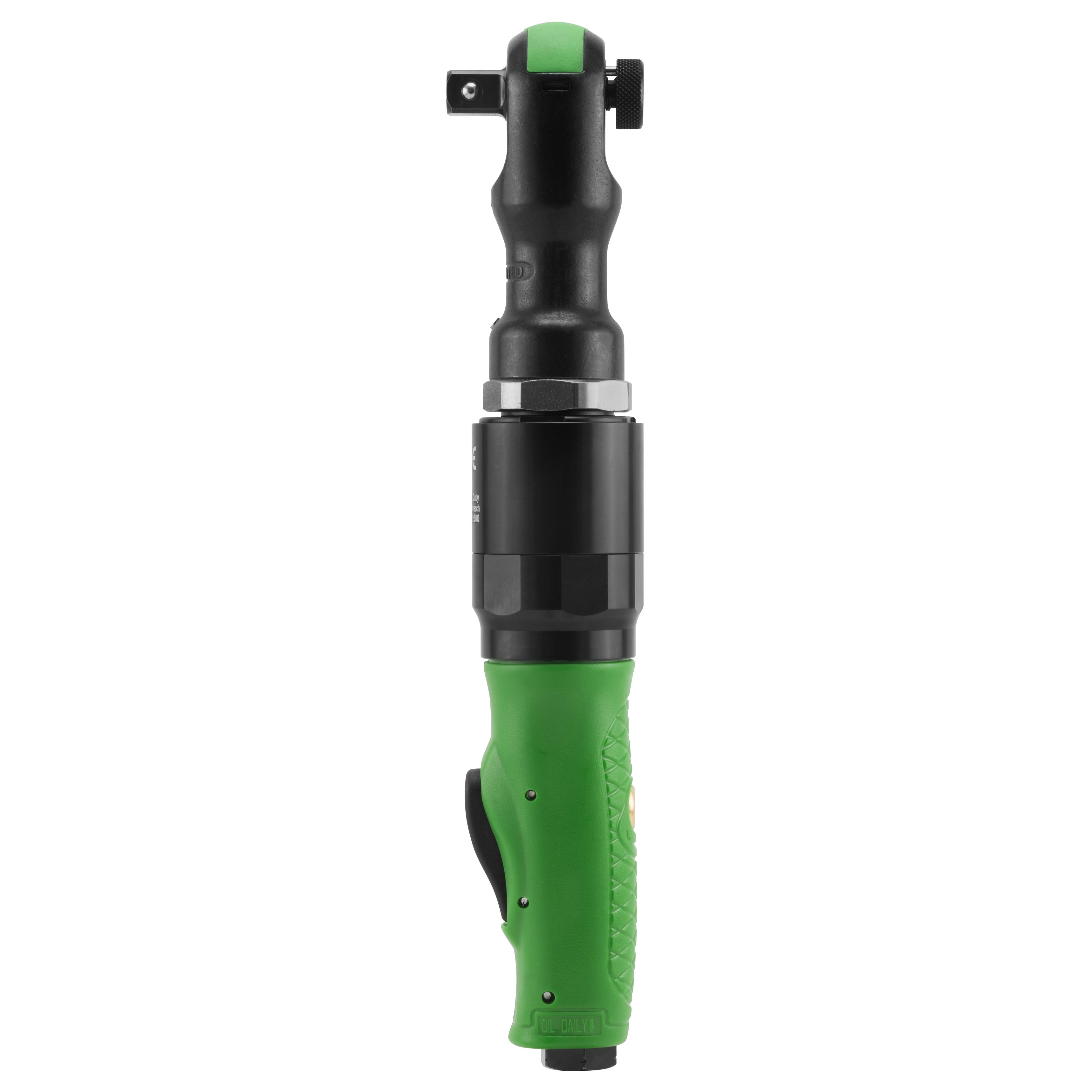

KI-2425冠亿超大型空气冲击棘轮扳手
KI-2425冠亿超大型空气冲击棘轮扳手
特色:
• Equipped with the Unicorn™ Hammer clutch with reduced reaction force offering three times the work efficiency of the ordinary ratchets • Head-sealed & dual-pawl ratchet mechanism enhances smooth operation and prolongs tool service life • 100 ft-lb (136 Nm) of max torque with 600 rpm free speed • Push and lock F/R knob prevents unintentional direction change under high speed and torque manipulation
优点:
• Ergonomic design for use in restricted spaces with optimized user comfort • Suitable for general tasks in garage, under-dashboard work, engine repair etc.

分解图:点击下载

描述

分類
產業類別Automotive Aftermarket
應用Assembly Tools
產品分類Ratchet Wrench
應用頻率Workshop - High


尺寸
長度 1 -Imperial (英吋)11.9
長度 1 -Metric (公厘)301


重量
英制 (磅)3.97
公制 (公斤)1.80


功率
動力源Compressed Air
推薦進氣壓力 (磅)90
推薦進氣壓力 (bar)6.2
平均耗氣量 (cfm)4
平均耗氣量 (L/min)113
進氣口 (英吋)1/4
空氣軟管I.D. (英吋)3/8
排氣方向Front exhaust


發動機
類型Air rotor
一般轉速 (轉)600


傳輸模式
扭矩傳導機制Ratchet with Unicorn Impact Clutch
棘齒裝置Dual


能力
工作力矩在5秒 (Nm)136
工作力矩在5秒 (Ft-lb)100


支撐器
砧座長度 (英吋)Standard
砧座形狀Square Drive (inch)
砧座尺寸 - 方型驅動 (英吋)1/2  3/8


安全要求
機械安全指令2006/42/EC
風險評估與風險降低ISO 12100
安全要求ISO 11148-6
噪音等級ISO 15744
振動等級ISO 28927-2


EC聲明
CE顫音。音響測試報告編號1501010
聲壓分貝 (A)97.3
聲功率分貝 (B)108.3
聲壓分貝 (C)116
聲音 - K分貝3
振動M / S ^ 214.61
振動-K2.89
