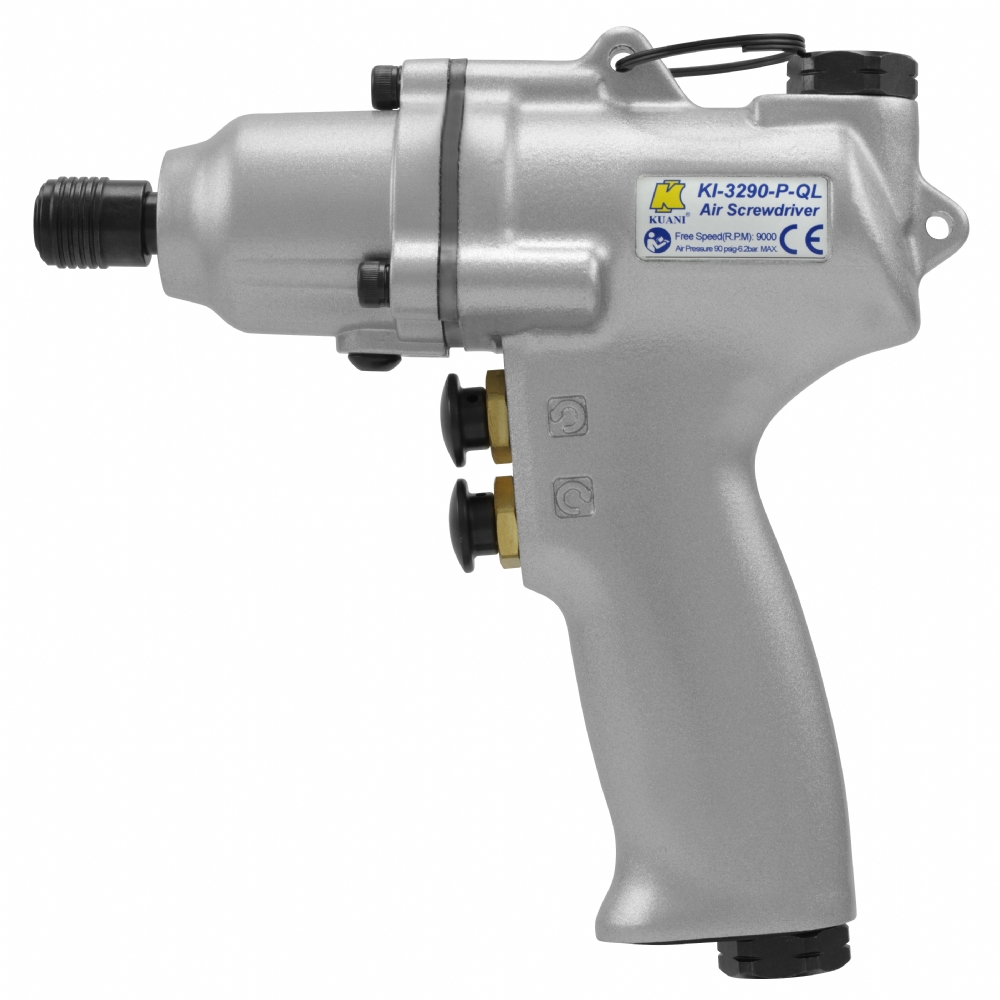

KI-3290-P-QL冠亿1/4十六进制.超重型气动螺丝刀
KI-3290-P-QL冠亿1/4十六进制.超重型气动螺丝刀
特色:
• Max torque of 250 ft-lb with free speed at 8500 rpm • Mono-power setting, the power is controlled by the air intake pressure • Dual air inlet design for different air line arrangement at workstations • Double Trigger for singlehanded direction control • Pistol tool with a hanging ring
优点:
• Smooth increase in torque and less reaction force • Two air inlets for different air line arrangement at workstation. • Ideal for high demand assembly lines that require less torque accuracy.

分解图:点击下载

描述

分類
產業類別Industrial Assembly Line
應用Assembly Tools
產品分類Screwdriver
應用頻率Manufacturing Assembly Line


尺寸
長度 1 -Imperial (英吋)7.0
長度 1 -Metric (公厘)177


重量
英制 (磅)1.76
公制 (公斤)0.80


功率
動力源Compressed Air
推薦進氣壓力 (磅)90
推薦進氣壓力 (bar)6.2
平均耗氣量 (cfm)4.5
平均耗氣量 (L/min)127
進氣口 (英吋)1/4
空氣軟管I.D. (英吋)3/8
排氣方向Rear


發動機
類型Air rotor
一般轉速 (轉)8500


傳輸模式
扭矩傳導機制Twin Dog Clutch


能力
工作力矩在5秒 (Nm)339
工作力矩在5秒 (in-lb)3000


安全要求
機械安全指令2006/42/EC
風險評估與風險降低ISO 12100
安全要求ISO 11148-6
噪音等級ISO 15744
振動等級ISO 28927-2


EC聲明
CE顫音。音響測試報告編號1508012
聲壓分貝 (A)95.3
聲功率分貝 (B)106.3
聲壓分貝 (C)121
聲音 - K分貝3
振動M / S ^ 23.98
振動-K0.90
